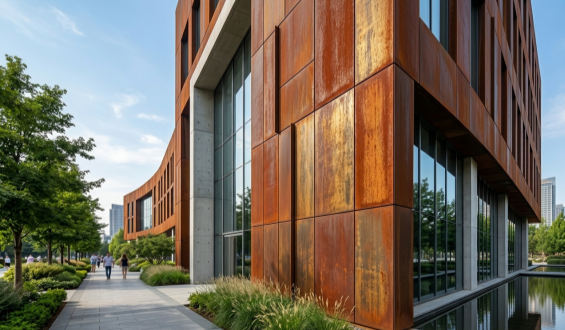

AHL Corten Steel Cladding Panels are precision-fabricated architectural facade solutions engineered for durability, aesthetics, and performance. Manufactured from premium weathering steel, these panels develop a stable, self-protecting patina that eliminates the need for painting or ongoing maintenance while providing exceptional weather resistance. Compatible with standard rain screen installation methods, including concealed clip and exposed fastener systems, AHL Corten metal cladding delivers reliable performance in commercial, residential, and institutional applications. With over 20 years of steel fabrication expertise, we provide custom solutions that meet both aesthetic vision and technical specifications.
.jpeg)
.jpeg)
| Specification |
Standard Options | Custom Available |
| Material |
Weathering Steel (Corten A / A588 / A242) | Yes |
| Thickness |
1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm | Yes |
| Panel Sizes |
Up to 3000mm x 1500mm (larger available) | Yes (any project dimensions) |
| Profiles |
Flat, corrugated, micro-rib, custom-formed | Yes |
| Finishes |
Natural weathering, accelerated patina, sealed, coated | Yes |
| Edge Detailing |
Square edge, folded edges, beveled, mitered | Yes |
| Perforation Options |
Custom laser-cut patterns available | Yes |
| Fastening Systems |
Concealed clip, exposed fastener, cassette | Custom engineered |
| Corrosion Resistance |
Meets ASTM A242 / A588 standards | Enhanced for coastal environments |
| Fire Rating |
Class A1 (non-combustible) | N/A |
| Feature |
Benefit |
| Premium Corten Steel Construction |
Develops beautiful, self-protecting patina; never needs painting or sealing. |
| Exceptional Durability |
Withstands harsh weather, UV exposure, temperature extremes, and coastal conditions. |
| Low Maintenance |
No repainting, resealing, or special care required over decades of service. |
| Sustainable Material |
100% recyclable; long lifespan reduces replacement frequency. |
| Natural Aesthetic Evolution |
Patina deepens and enriches over time—never looks "worn out." |
| Fire Resistance |
Non-combustible material (Class A1) for enhanced building safety. |
| Versatile Design Options |
Various profiles, finishes, and installation patterns available. |
| Rain Screen Compatibility |
Ventilated cavity reduces thermal bridging and manages moisture. |
| Custom Fabrication |
Panels manufactured to exact project specifications. |
| Profile Type |
Description | Best For |
| Flat Panels |
Clean, smooth surface; minimalist aesthetic | Modern facades, feature walls, interiors |
| Corrugated / R Panel |
Classic industrial ribbed pattern | Warehouse conversions, industrial aesthetics |
| Micro-Rib / Slimline |
Fine, subtle ribbing for texture without bold lines | Contemporary architecture |
| Cassette Panels |
Self-contained panels with folded edges | Rain screen systems, high-end commercial |
| Shiplap / Board & Batten |
Horizontal or vertical plank effect | Residential, warm modern aesthetic |
| Custom-Formed |
Unique profiles to match architectural vision | Signature buildings, iconic projects |
| Perforated |
Laser-cut patterns for visual interest, shading | Screens, sun control, decorative elements |
| Application |
Description |
| Building Facades |
Full-building exterior cladding for commercial, residential, institutional projects. |
| Feature Walls |
Accent walls highlighting entrances, lobbies, or public spaces. |
| Rain Screen Systems |
Ventilated facade systems with moisture management and thermal benefits. |
| Column Cladding |
Wrapping structural columns in Corten for visual continuity. |
| Soffits & Ceilings |
Underside applications for covered outdoor areas. |
| Interior Feature Walls |
Dramatic interior accents for lobbies, restaurants, retail. |
| Fencing & Screening |
Large-scale privacy screens and boundary definitions. |
| Retail & Hospitality |
Brand-defining exteriors for restaurants, hotels, stores. |
| Cultural Institutions |
Museums, galleries, public buildings requiring distinctive identity. |
| Residential Architecture |
Private homes seeking unique, low-maintenance exteriors. |
A: No. Weathering steel forms a stable, protective rust layer that prevents further corrosion. Provided they are installed properly (including drainage and ventilation measures), weathering steel exterior panels can last for decades.
A: During the initial weathering process, minor rust runoff may occur. This can be effectively controlled through proper detailing—including the installation of drip edges and a gravel base. Pre-weathered or sealed surfaces can completely prevent initial rust runoff.
A: Virtually no maintenance is required. Weathering steel does not require painting, sealing, or coating. In coastal environments, occasional rinsing with fresh water is sufficient to remove salt deposits.
A: Initial color changes will appear within a few weeks. A mature, stable rust layer typically forms within 6 to 24 months, depending on climatic conditions. Accelerated rusting treatments can produce the final appearance immediately.
A: Yes. In high-salinity environments, we recommend using thicker gauges (3 mm and above) and rinsing with fresh water periodically.
A: Stainless steel fasteners (Grade 316 recommended) should be used. Never use galvanized, copper, or brass fasteners—otherwise, electrochemical corrosion will occur.
A: Although the initial cost may be higher, Corten steel requires no maintenance and has an extremely long service life, making it highly cost-effective over the building’s lifecycle.
