Introduce

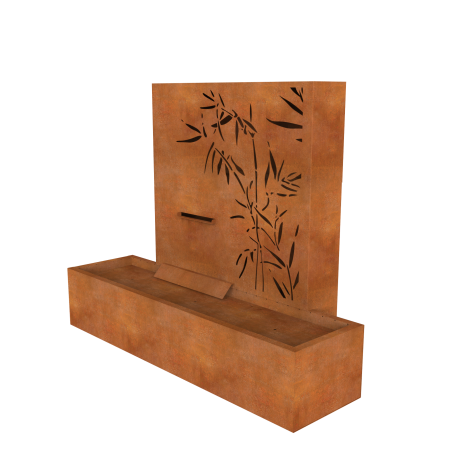

The WF04-01 is a meticulously fabricated water feature delivering a dramatic sheet of cascading water. With overall dimensions of 1500mm height, 1000mm width, and 200mm depth, this unit creates a substantial visual impact while maintaining a slim profile. The design features a 300mm top header tank, a 900mm water fall zone, and a 300mm lower basin, all integrated into a single Corten steel structure. The precision 25mm weir ensures a smooth, even water curtain across the full width. The 400mm base projection provides stability for freestanding installations. Constructed from premium weathering steel, it develops a stable, self-protecting patina that eliminates the need for painting or ongoing maintenance. The integrated recirculating pump and hidden plumbing ensure effortless operation. Ideal for residential gardens, hotel lobbies, corporate atriums, and commercial landscapes requiring both visual impact and enduring quality.

Specification

AHL-WF01

Garden Water Feature

Name: Waterfall Herb Planter Water Feature

Size(MM): 890(H)*720(W)*440(D)

Surface: rusted and unrusted

AHL-WF02

Garden Water Feature

Name: Rain Curtain Water Feature

Size(MM): 1800(W)*250(D)*1800(H);pot: 2000(W)*500(D)*500(H)

Surface: rusted and unrusted

AHL-WF03

Garden Water Feature

Name: Rain Curtain Water Feature

Size(MM): 2400(W)*250(D)*1800(H); pot: 2500(W)*400(D)*500(H)

Surface: rusted and unrusted

AHL-WF04

Garden Water Feature

Name: Outdoor Waterfall

Size(MM): 1800(W)*250(D)*1800(H); pot: 2000(W)*500(D)*500(H)

Surface: rusted and unrusted

AHL-WF05

Garden Water Feature

Name: Rain Curtain Water Feature

Size(MM): 800(W)*250(D)*1800(H); pot: 1000(W)*500(D)*500(H)

Surface: rusted and unrusted

AHL-WF06

Garden Water Feature

Name: Rain Curtain Water Feature

Size(MM): 1800(W)*250(D)*1800(H); pot: 2000(W)*500(D)*500(H)

Surface: rusted and unrusted

AHL-WF07

Garden Water Feature

Name: Corten steel water fountain

Size(MM): fountain: 1000(W)*1200(H); pond: 1500(W)*400(D)

Surface: rusted and unrusted

AHL-WF08/09/10

Garden Water Feature

Name: Corten steel water fountain

Size(MM): 1000(D)*740(H)/1200(D)*740(H)/1500(D)*740(H)

Surface: rusted and unrusted

AHL-WF11/12/13

Garden Water Feature

Name: Corten steel water table

Size(MM): 800(L)*800(W)*400(H)/1000(L)*1000(W)*400(H)/1200(L)*1200(W)*400(H)

Surface: rusted and unrusted

AHL-WF14/15/16

Garden Water Feature

Name: Corten steel water table

Size(MM): 600(L)*600(W)*700(H)/600(L)*600(W)*1000(H)/600(L)*600(W)*1300(H)

Surface: rusted and unrusted

AHL-WF17

Garden Water Feature

Name: Corten steel water table

Size(MM): 1000(L)*2500(W)*400(H)

Surface: rusted and unrusted

AHL-WF18

Garden Water Feature

Name: Corten steel lily bowl

Size(MM): 800(D)*500(H)

Surface: rusted and unrusted

AHL-WF19

Garden Water Feature

Name: Corten steel water feature

Size(MM): 1500(H)*1500(W)*450(D)

Surface: rusted and unrusted

AHL-WF20

Garden Water Feature

Name: Vertical Water Wall with LED lights

Size(MM): 1750(W)*400(D)*1800(H)

Surface: rusted and unrusted

AHL-WF21

Garden Water Feature

Name: Rain Curtain Water Feature

Size(MM): 1200(H)*1200(W)*180(D)

Surface: rusted and unrusted

AHL-WF22

Garden Water Feature

Name: Vertical Water Wall with LED lights

Size(MM): 1750(W)*400(D)*1200(H)

Surface: rusted and unrusted

AHL-WF23

Garden Water Feature

Name: Vertical Water Wall with LED lights

Size(MM): 1000(W)*100(D)*2000(H); pot: 2000(W)*500(D)*500(H)

Surface: rusted and unrusted

AHL-WF24

Garden Water Feature

Name: Fountain & Pond

Size(MM): 650(H)*330(W)*550(D); pond: 1000*1000*200

Surface: rusted and unrusted

AHL-WF25

Garden Water Feature

Name: Fountain & Pond

Size(MM): 1524(H)*1219(W)*495(D)

Surface: rusted and unrusted

AHL-WF26

Garden Water Feature

Name: Rain Curtain Water Feature

Size(MM): 1200(W)*120(D)*1500(H)

Surface: rusted and unrusted

AHL-WF27

Garden Water Feature

Name: Rain Curtain Water Feature

Size(MM): 330(W)*550(D)*650(H)

Surface: rusted and unrusted

AHL-WF28

Garden Water Feature

Name: Round Waterfall Fountain

Size(MM): 1250(D)*1250(H)

Surface: rusted and unrusted

AHL-WF29

Garden Water Feature

Name: Rain Curtain Water Feature

Size(MM): 1500(H)*1500(W)*450(D)

Surface: rusted and unrusted

AHL-WF30/31/32

Garden Water Feature

Name: Corten steel freestanding pond

Size(MM): 2000(L)*250(D)*1200(H)/2500(L)*250(D)*1200(H)/3000(L)*250(D)*1200(H)

Surface: rusted and unrusted

AHL-WF33

Garden Water Feature

Name: Corten steel water bowl

Size(MM): 1000(D)*800(H)

Surface: rusted and unrusted

Key Features

Feature	Benefit
Impressive 1500mm x 1000mm Size	Creates a dramatic focal point visible from anywhere in the garden.
Premium Corten Steel Construction	Develops beautiful self-protecting patina; never needs painting.
Smooth, Even Water Curtain	Precision 25mm weir ensures uniform water flow across the full 1000mm width.
900mm Water Fall Zone	Generous cascading water height for maximum visual and auditory impact.
300mm Top Header Tank	Conceals the water distribution system for a clean appearance.
300mm Lower Basin	Integrated reservoir with a hidden pump for recirculation.
Slim 200mm Profile	Projects minimally from the wall while maintaining structural integrity.
Stable 400mm Base	Provides secure freestanding installation without wall mounting.
Integrated Recirculating System	Self-contained water reservoir and pump; no constant water connection needed.
Low Maintenance	No painting or sealing required; simple seasonal maintenance.

Detailed Specifications Table

Specification	Details
Model Number	WF04-01
Product Type	Corten Steel Water Wall / Water Feature
Overall Height	1500 mm
Overall Width	1000 mm
Overall Depth / Projection	200 mm
Top Header Tank Height	300 mm
Waterfall Zone Height	900 mm
Lower Basin Height	300 mm
Weir / Water Outlet Gap	25 mm
Base Projection / Footprint Depth	400 mm
Material	Weathering Steel (Corten A / A588)
Material Thickness	2.0mm - 3.0mm (customizable)
Finish	Natural rust patina (accelerated pre-weathering available)
Water Distribution	Precision-machined stainless steel weir
Pump Type	Submersible recirculation pump (included)
Lighting Options	Optional LED (warm white, cool white, RGB)
Mounting Options	Freestanding (standard) or wall-mounted (optional)

Applications & Uses

Setting	Description
Residential Gardens	Create a tranquil meditation zone or dramatic entertaining backdrop
Patio & Terrace	Define outdoor living areas with soothing water sounds
Hotel & Resort Entrances	Welcome guests with stunning first impressions
Restaurant Outdoor Dining	Enhance ambiance with an elegant water feature
Spa & Wellness Centers	Promote relaxation through the sight and sound of water
Corporate Landscapes	Elevate office environments with sophisticated design
Public Parks & Plazas	Durable, maintenance-free public art installation
Rooftop Gardens	Add vertical interest to urban outdoor spaces
Interior Atriums	Bring the tranquility of water indoors
Pool Enclosures	Integrate with a swimming pool for resort-style luxury

Why Choose AHL for Corten Steel Water Features?

AHL Advantage	Benefit to You
20+ Years Steel Expertise	Deep understanding of Corten properties and fabrication
Precision Laser Cutting	Clean, accurate cutouts for crisp lettering and logos
Factory Direct Pricing	Competitive costs without middleman markup
Quality Assurance	Rigorous inspection of both steel and electrical components
Custom Design Support	Technical assistance from concept to completion
Weather-Sealed Electronics	Reliable LED performance in outdoor conditions
Global Shipping	Secure packaging for worldwide delivery

Frequently Asked Questions

Q1: Does the Corten steel rust through from constant water exposure?

A: No. Corten steel is specifically designed for weathering applications. The stable patina that forms actually protects the underlying steel from further corrosion. With proper drainage and recirculation, water features last for decades.

Q2: Will the rust stain the water or the surrounding area?

A: During initial weathering (first few months), minor runoff may occur. Once the stable patina forms, runoff ceases. The recirculating water may take on a slight amber tint initially, but it will clear. Pre-weathered or sealed options are available to eliminate initial runoff.

Q3: How noisy is the water curtain?

A: The sound is adjustable via pump speed. It can range from a gentle, soothing trickle to a more vigorous cascade. The WF09-01 is engineered for pleasant water sound—not harsh splashing.

Q4: What maintenance is required?

A: Minimal. Regular tasks include topping up water (evaporation), cleaning the pump filter monthly, and seasonal deep cleaning. The Corten steel itself requires no maintenance.

Q5: Can I use it in freezing winter climates?

A: Yes, with proper winterization. Before the first freeze, drain all water from the system, including the pump, plumbing, and reservoir. The Corten steel is freeze-thaw resistant. We provide detailed winterization instructions.

Q6: Can I customize the size?

A: Absolutely. While the WF09-01 is our standard 1500x1500mm model, we offer custom sizing to meet your specific space requirements.

Q7: Do you offer lighting options?

A: Yes. We offer integrated LED lighting in warm white, cool white, or RGB color-changing options. Lights can be positioned at the top (illuminating the water curtain) or within the reservoir (uplighting effect).

Q8: How is the water distributed evenly?

A: The WF09-01 features a precision-machined stainless steel weir that ensures uniform water flow across the full 1471.5mm width, creating a seamless curtain without gaps.

Q9: Can I install it myself?

A: While basic installation is possible for experienced DIYers, we recommend professional installation for electrical connections and proper wall mounting, especially for larger units.

Q10: What pump is included?

A: We include a high-quality, energy-efficient submersible pump sized specifically for your water curtain. Pump specifications vary based on final height and flow requirements.

1. Weathering steel is a pre-weathering material that can be used outdoors for decades;

2. We have our own raw materials, processing equipment, engineers and skilled workers to ensure quality and after-sales service;

3. The company can customize LED lights, fountains, water pumps and other functions according to customer requirements.
