Weathering steel—once reserved for heavy industry and civil engineering—has now ascended to become an iconic material in contemporary architectural vocabulary. Its allure lies in its inherent paradox: as a high-strength industrial alloy, it possesses the warm texture and organic patina of wood or stone. For architects, Corten steel cladding creates “living” facades—not merely resisting the erosion of time, but actively engaging with it, evolving from its original metallic gray to a deep, velvety ochre hue. Successful implementation, however, demands not only aesthetic discernment but also a deep understanding of metallurgical properties, rainwater management, and construction details. This guide provides architects with a professional framework to harness the unique properties of weathering steel, ensuring each project delivers a powerful, enduring, and technically reliable visual impact.
.png)
Introduction: Why Corten Cladding Has Become a Design Staple
The Rise of CORTEN Steel in Contemporary Architecture
From Richard Serra's monumental sculptures to the streamlined facades of urban boutiques, CORTEN steel has moved from the design periphery to center stage. It bridges the gap between “industrial” and “natural,” making it the ideal choice for projects seeking an authentic, unvarnished aesthetic.
Beyond Aesthetics: The Unique Traits of a Living Material
Unlike powder-coated metals that fade and peel, weathering steel self-repairs. Its stable oxide layer—commonly known as patina—forms a permanent corrosion barrier, eliminating the need for painting and making it an eco-friendly choice for high-performance building envelopes.
This Guide Delivers: Expert Insights for Successful Application
We go beyond surface aesthetics to explore the technical application of weathering steel. This guide covers the core design principles of this dynamic material, ensuring structural integrity and aesthetic excellence.
Tip 1: Embrace the Philosophy of "Designing with Patina"
Understanding Corten Steel as a Living Material: Evolution, Not Stasis
Architects must view Corten cladding as a biological process, not a finished product. The rust layer results from wet-dry cycles; without this cycle, the protective layer can never fully stabilize.
Setting Client Expectations: The Beauty of Time's Passage
It must be made clear to clients that “rusting” is not a defect. Visualizing the evolution from bright orange to deep brown effectively alleviates post-installation concerns about color inconsistency.
Integrating Rust Development into Design Narratives
Transform weathering into a design feature. The building's “aging” trajectory can resonate with the site's story, creating a unique temporal imprint through the distinct marks of local humidity, rainfall, and air quality.

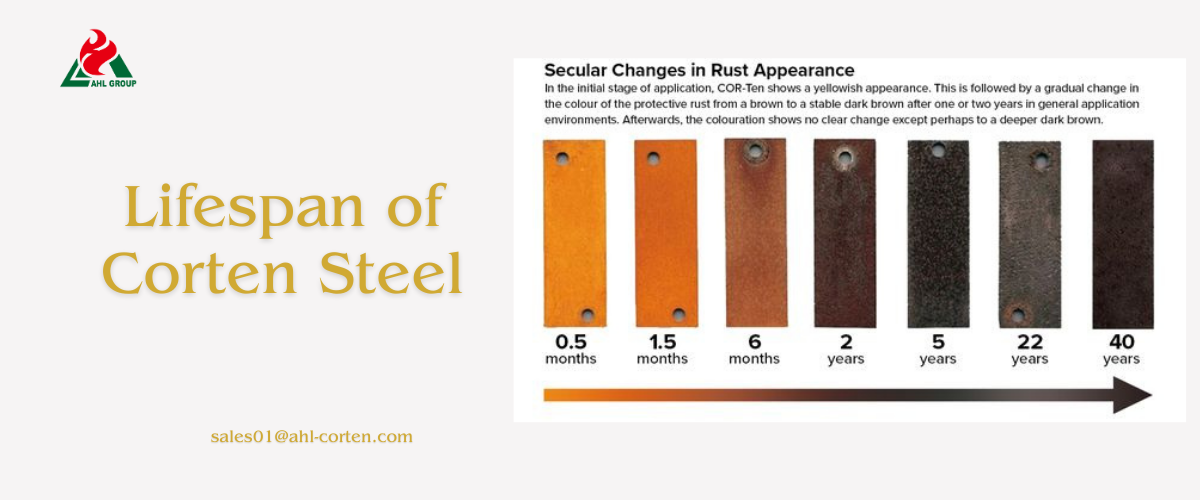

Visualize Before-and-After: Empower Clients to Witness Transformation
Provide a “Glaze Timeline.” Illustrate the building's appearance at 6 months, 2 years, and 10 years. This transparency allows clients to embrace material evolution rather than fear its changes.
Tip 2: Master the Art of Complementary Material Pairings
Corten Steel + Wood: Warmth, Texture, and Organic Harmony
The orange tones of Corten steel naturally complement the tannin hues found in woods like cedar or ipe. This pairing is an ideal choice for residential projects, creating a “warm industrial” atmosphere while blending the essence of forest and factory.
Corten Steel + Glass: Transparency, Reflection, and Industrial Elegance
The rugged, matte texture of weathering steel creates a striking visual contrast with the mirror-like reflections of high-performance glass. This juxtaposition epitomizes modern minimalism.
Corten Steel + Stone/Concrete: Majestic Presence and Dialogue with the Earth
Combining weathering steel with raw concrete or natural stone anchors the architecture firmly to the earth. The neutral gray tones of concrete elevate the steel's vibrant texture to the focal point of the facade.
Corten Steel + Greenery: Living Walls, Green Roofs, and Natural Contrast
The complementary hue to orange is teal. Placing Corten steel surfaces beside lush landscapes creates a striking dialogue—the “lifeless” industrial metal accentuates the “vibrant” vitality of plant life.
What to Avoid: Material Combinations That Clash or Compete
Avoid pairing Corten with highly polished, "perfect" metals like chrome or mirror-finish stainless steel. Be extremely cautious with light-colored, porous stone (like white marble), which may be ruined by iron-oxide runoff.
Tip 3: Strategize Scale, Proportion, and Panel Modulation
Large-format panels: Creating seamless, monumental surfaces
For public buildings, large-format Corten panels in 3mm or 4mm thickness create the visual effect of an integral, permanent structure. Ensure joints feature visible lines (shadow gaps) to accommodate thermal expansion and contraction.
Modular Systems: Rhythm, Repetition, and Textural Interest
Small modular cladding panels break down the mass of large structures, adding rhythm and textural interest through repeating joint patterns.
Mixed Panel Sizes: Decomposing Volume to Fit Human Scale
Using panels of varying widths creates a “barcode” effect that enhances visual complexity while masking the repetition inherent in large-scale cladding.
Golden Ratio: Applying Classical Proportion to Modern Cladding
The modular system employs classical proportions (1:1.618) to ensure rhythmic variation appears balanced and meaningful, rather than haphazardly stacked.
.png)
Tip 4: Harness Light, Shadow, and Orientation
Interplay of Rust Layer and Light: Dawn · Noon · Dusk
Weathering steel is exceptionally sensitive to light. In morning light, it may exhibit bright, fiery hues; under overcast skies, it transforms into a deep, chocolate brown.
Creating Spatial Layers: Recessed Panels, Grooves, and Shadow Lines
Incorporate “shadow gaps” over 20 millimeters deep between each panel wall. These recessed lines sharply define the building's silhouette, even under direct midday sunlight when shadows are scarce.
Directional Variation: North vs. South Facing Installations
South-facing facades undergo more frequent wet-dry cycles, accelerating the formation of a stable rust patina. North-facing walls remain persistently damp, potentially yielding deeper, uneven surface effects or localized lichen growth.
Artificial Lighting Strategies: Upward, Downward, and Skimming Light Effects
To accentuate the granular texture of verdigris, low-angle “skimming light” illumination is recommended. At night, upward lighting transforms flat panels into dramatic three-dimensional shadow landscapes.
Tip 5: Details for Drainage and Runoff Management
Hidden Challenge: Drainage Direction is Critical
The primary technical risk with Corten steel siding lies in the loss of iron oxide during the initial weathering phase. This “bleed” can permanently stain porous materials like concrete or light-colored stone.
Design Efficient Drip Edges and Eaves
Direct rainwater away from the building base using deep drip edges. Employ “upturned” flashing to prevent moisture migration from the steel to secondary materials.
Controlling Initial Runoff: Protecting Adjacent Materials
Install sacrificial gravel channels at wall bases to “intercept” and filter oxide-laden rainwater. Alternatively, select “pre-weathered” panels to ensure stabilization before on-site delivery.
Integration with Building Drainage Systems
Ensure exterior wall drainage systems are separated from primary pedestrian pathways. Avoid “flush” transitions to prevent rainwater pooling beneath panel edges.
Tip 6: Specify Connection Details with Surgical Precision
Visible vs. Concealed Fasteners: A Balance of Aesthetics and Performance
Exposed rivets convey an industrial “machined” texture, while concealed clip systems (rain screen type) allow material textures to take center stage, completely unobstructed.
Material Compatibility: Why Stainless Steel is Irreplaceable
Always select 304 or 316 grade stainless steel fasteners. Common carbon steel or galvanized bolts trigger electrochemical reactions, leading to structural failure and unsightly white zinc stains.
Thermal Expansion and Contraction: Accommodating Material Deformation
Metals exhibit thermal expansion properties. For example, a 3-meter-long panel will experience significant displacement when temperature differences reach 50°C. Use enlarged apertures or slotted clamps to prevent panel warping and the “oil drum effect.”
Ventilated Cavity System: Preventing Moisture Trapping
Weathering steel should be installed as a “rain screen.” The ventilated cavity behind the facade ensures the backside remains dry, which is critical for forming a protective rust layer on both sides.
Tip 7: Plan for the Long Term – Maintenance and Aging Gracefully
The True Way to Maintain Weathering Steel: Less is More
The appeal of weathering steel lies in its low-maintenance nature. Never seal or paint weathering steel, as this prevents the rust layer from breathing, ultimately leading to flaking and deep corrosion.
Cleaning Guidelines: Protecting the Patina
If cleaning is necessary, use a low-pressure water jet. Never employ acidic substances or wire brushes, as these strip away the protective oxide layer, restarting the weathering process unevenly.
Lifecycle Planning: Weathering Steel's 50+ Year Performance
Corten steel is a material that can be passed down through generations. By selecting appropriate plate thicknesses (typically 2.0mm to 3.0mm for building facades), its lifespan can easily outlast internal building systems.
End-of-Life Considerations: Recycling and Circular Design
Corten steel is 100% recyclable. Its non-toxic coating properties make it a preferred material for circular design and LEED certification projects.
.png)

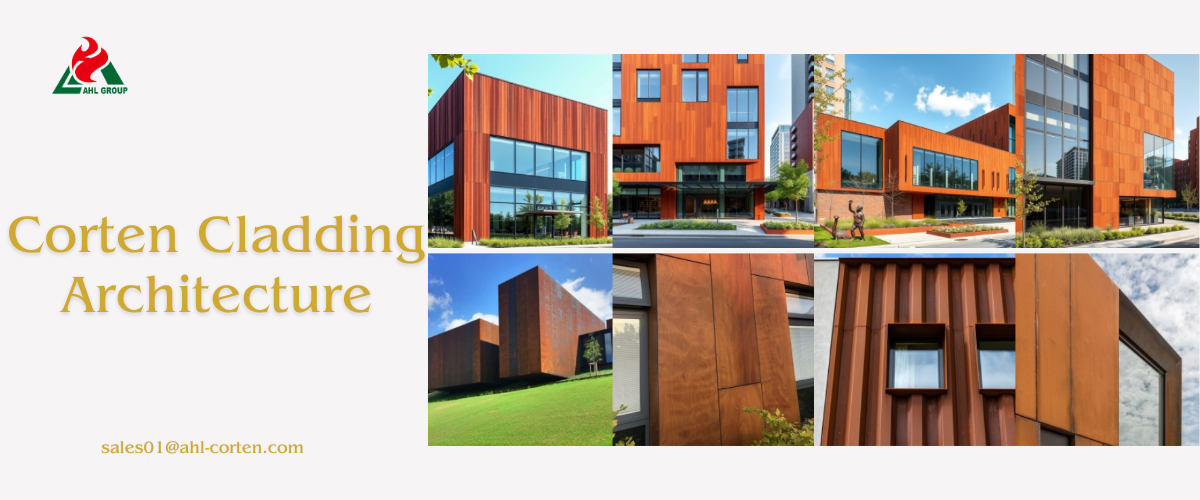

Integrating Corten Cladding into Different Architectural Styles
Modernism and Minimalism: Clean Lines and Monochromatic Palettes
In minimalist design, weathering steel is employed to create a singular, powerful “statement-making” texture within a restrained color scheme. Architects should select large-format panels and utilize hairline seam connections.
Industrial and Brutalist: Raw Materials and Powerful Statements
Weathering steel carries industrial DNA. Paired with formwork concrete, it amplifies a sense of timelessness and “material authenticity.”
Rustic and Local: Blending into Natural Landscapes
In rural settings, weathering steel becomes an embodiment of the earth. Its hues allow structures to “disappear” within deciduous forests or desert canyons.
Adaptive Reuse: Weathering Steel as a Contemporary Contrast
Weathering steel serves as an exceptional tool for architectural “intervention.” When adding modern wings to historic brick buildings, it clearly marks the new additions while avoiding visual conflict with the original structure.
Climate-Specific Design Considerations for Corten Cladding
Coastal Environments: Salt Spray Erosion and Accelerated Rusting
Within 5 kilometers of the sea, salt spray inhibits the formation of a stable rust layer, leading to “flaking.” Architects must design periodic freshwater rinsing systems to remove chloride deposits.
High Rainfall/Humid Climates: Drainage and Ventilation Priority
In high-humidity regions, a “double-skin curtain wall” rain screen with at least 38mm of ventilated air cavity is essential to keep steel components dry.
Arid/Desert Climates: UV Exposure and Thermal Performance
While verdigris forms slowly in dry air, the high solar heat gain of dark-colored steel must be addressed through high-performance insulation and vapor barriers.
Cold Climates/Freeze-Thaw Zones: Durability Details
Joint designs must prevent ice buildup from “prying open” panels. Slotted holes are critical for thermal expansion to accommodate temperature fluctuations.
Urban Environments: Pollution, Graffiti, and Access for Maintenance
Sulfur dioxide in urban air accelerates the darkening of the rust layer. Elevated installation or graffiti-resistant sacrificial coatings should be planned for areas with frequent public access, as porous surfaces are difficult to clean.
Technical Specifications: What Every Architect Should Request
Material Certification: ASTM A588 vs. EN 10025-5 Requirements
Ensure steel conforms to ASTM A588 or ASTM A606-4 standards. These standards guarantee the specific chemical composition (copper, chromium, nickel) required for stable patina formation.
Thickness Specifications: Match Specifications to Application Scenarios
► Decorative screens: 1.5 mm to 2.0 mm
► Standard Rain Screen: 2.5 mm to 3.0 mm
► Structural/Curtain Wall: 5.0 mm and above
Welding Quality Standards: Specification Requirements and Inspection Points
Welding weathering steel requires specialized electrodes containing matching weathering alloys (e.g., E7018-W). Ordinary carbon steel welding wire will cause rusting at varying rates.
Surface Treatment Options: Natural Finish, Pre-weathered, or Oiled
Pre-weathered panels undergo acid etching at the factory, delivering a mature appearance upon delivery and significantly reducing initial rust seepage issues.
Warranty and Performance Guarantee
Standard weathering steel warranties primarily cover “corrosion-induced perforation.” Typical warranty periods range from 10 to 20 years, contingent upon the inclusion of a ventilation cavity in the design.
.png)
Conclusion: Designing with Confidence, Building for Generations
A successful Corten steel façade design balances metallurgical properties with geometric form. By prioritizing ventilation, managing drainage, and selecting compatible materials, architects can transcend the limitations of the “rust appearance” to create high-performance building envelopes. Your role is to become an interpreter of this material. By articulating the aesthetic value of the “living patina” to clients, you elevate projects from ordinary structures to environmental artworks.
AHL Group delivers far more than material supply. We provide end-to-end technical support—from construction drawings and structural calculations to custom laser-cut patterns. Ready to transform your next project? Contact AHL Group today to request a physical sample kit or schedule a technical consultation with our Corten metal cladding specialists.
